Automating Vertex Input Setup in Vulkan Using Shader Reflection
In Vulkan, to create graphics pipelines, we call the function:
VkResult vkCreateGraphicsPipelines(
VkDevice device,
VkPipelineCache pipelineCache,
uint32_t createInfoCount,
const VkGraphicsPipelineCreateInfo* pCreateInfos,
const VkAllocationCallbacks* pAllocator,
VkPipeline* pPipelines
);
pCreateInfos is a pointer to an array of objects of type VkGraphicsPipelineCreateInfo. Each one of these objects contains parameters that dictate how the corresponding graphics pipeline should be created.
The VkGraphicsPipelineCreateInfo structure is defined as follows:
typedef struct VkGraphicsPipelineCreateInfo {
VkStructureType sType;
const void* pNext;
VkPipelineCreateFlags flags;
uint32_t stageCount;
const VkPipelineShaderStageCreateInfo* pStages;
const VkPipelineVertexInputStateCreateInfo* pVertexInputState;
const VkPipelineInputAssemblyStateCreateInfo* pInputAssemblyState;
const VkPipelineTessellationStateCreateInfo* pTessellationState;
const VkPipelineViewportStateCreateInfo* pViewportState;
const VkPipelineRasterizationStateCreateInfo* pRasterizationState;
const VkPipelineMultisampleStateCreateInfo* pMultisampleState;
const VkPipelineDepthStencilStateCreateInfo* pDepthStencilState;
const VkPipelineColorBlendStateCreateInfo* pColorBlendState;
const VkPipelineDynamicStateCreateInfo* pDynamicState;
VkPipelineLayout layout;
VkRenderPass renderPass;
uint32_t subpass;
VkPipeline basePipelineHandle;
int32_t basePipelineIndex;
} VkGraphicsPipelineCreateInfo
pVertexInputState is a pointer to an object of type VkPipelineVertexInputStateCreateInfo. This object contains detailed description of the input given to the vertex shader. It must be filled accurately according to the vertex shader.
The structure VkPipelineVertexInputStateCreateInfo is defined as follows:
typedef struct VkPipelineVertexInputStateCreateInfo {
VkStructureType sType;
const void* pNext;
VkPipelineVertexInputStateCreateFlags flags;
uint32_t vertexBindingDescriptionCount;
const VkVertexInputBindingDescription* pVertexBindingDescriptions;
uint32_t vertexAttributeDescriptionCount;
const VkVertexInputAttributeDescription* pVertexAttributeDescriptions;
} VkPipelineVertexInputStateCreateInfo
pVertexBindingDescriptions is a pointer to an array of objects of type VkVertexInputBindingDescription, and pVertexAttributeDescriptions is a pointer to an array of objects of type VkVertexInputAttributeDescription. Each input to the vertex shader has a corresponding VkVertexInputAttributeDescription object containing detailed information about the nature of that input. For each vertex buffer bound to the pipeline, there must be a corresponding VkVertexInputBindingDescription describing how data is read from that buffer.
The structure VkVertexInputBindingDescription is defined as follows:
typedef struct VkVertexInputBindingDescription {
uint32_t binding;
uint32_t stride;
VkVertexInputRate inputRate;
} VkVertexInputBindingDescription;
where:
- binding is the binding index.
- stride is the number of bytes to jump within the buffer to get the next element.
- inputRate specifies when should the next set of data be fetched from the buffer:
- If set to VK_VERTEX_INPUT_RATE_VERTEX, new set of data is fetched from the buffer for every vertex.
- If set to VK_VERTEX_INPUT_RATE_INSTANCE, new set of data is fetched from the buffer for every instance, and is reused for the all vertices of that instance.
The structure VkVertexInputAttributeDescription is defined as follows:
typedef struct VkVertexInputAttributeDescription {
uint32_t location;
uint32_t binding;
VkFormat format;
uint32_t offset;
} VkVertexInputAttributeDescription;
where:
- location is the location index of the input as described in the vertex shader.
- binding is the binding index within the VkVertexInputBindingDescription object from which this attribute will read its data from.
- format is the format of the input. It is set according to its size and its data type. The list of accepted formats can be found here.
- offset is the byte offset from the start of each vertex element that specifies where the data for that particular attribute begins.
As an example, consider the following vertex shader:
#version 450
layout(location = 0) in vec3 vertex;
layout(location = 1) in vec3 normal;
layout(location = 2) in vec2 textureCoordinate;
layout(set = 0, binding = 0) uniform VertexShaderUniformVariables {
mat4 modelMatrix;
mat4 cameraViewMatrix;
mat4 cameraProjectionMatrix;
} vs;
void main()
{
gl_Position = vs.cameraProjectionMatrix * vs.cameraViewMatrix * vs.modelMatrix * vec4(vertex, 1.0);
}

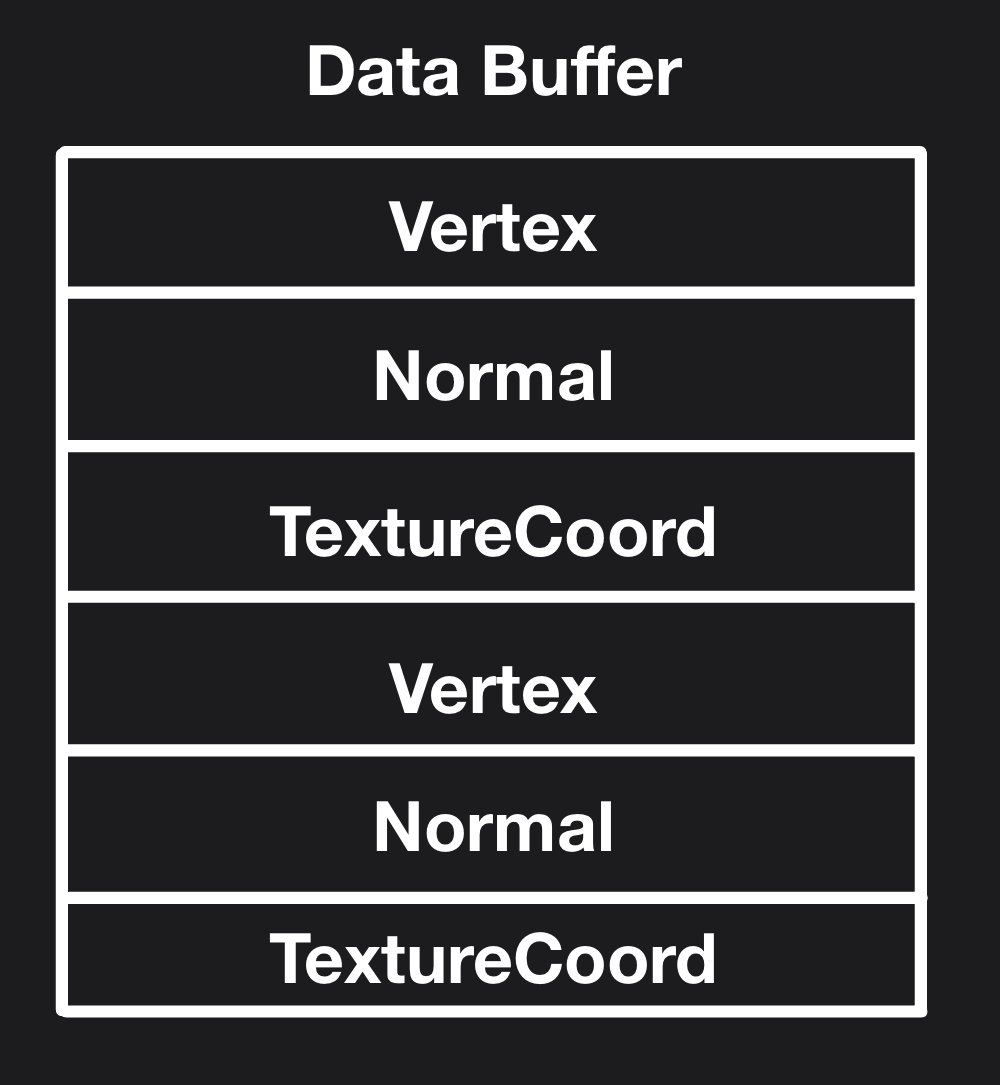

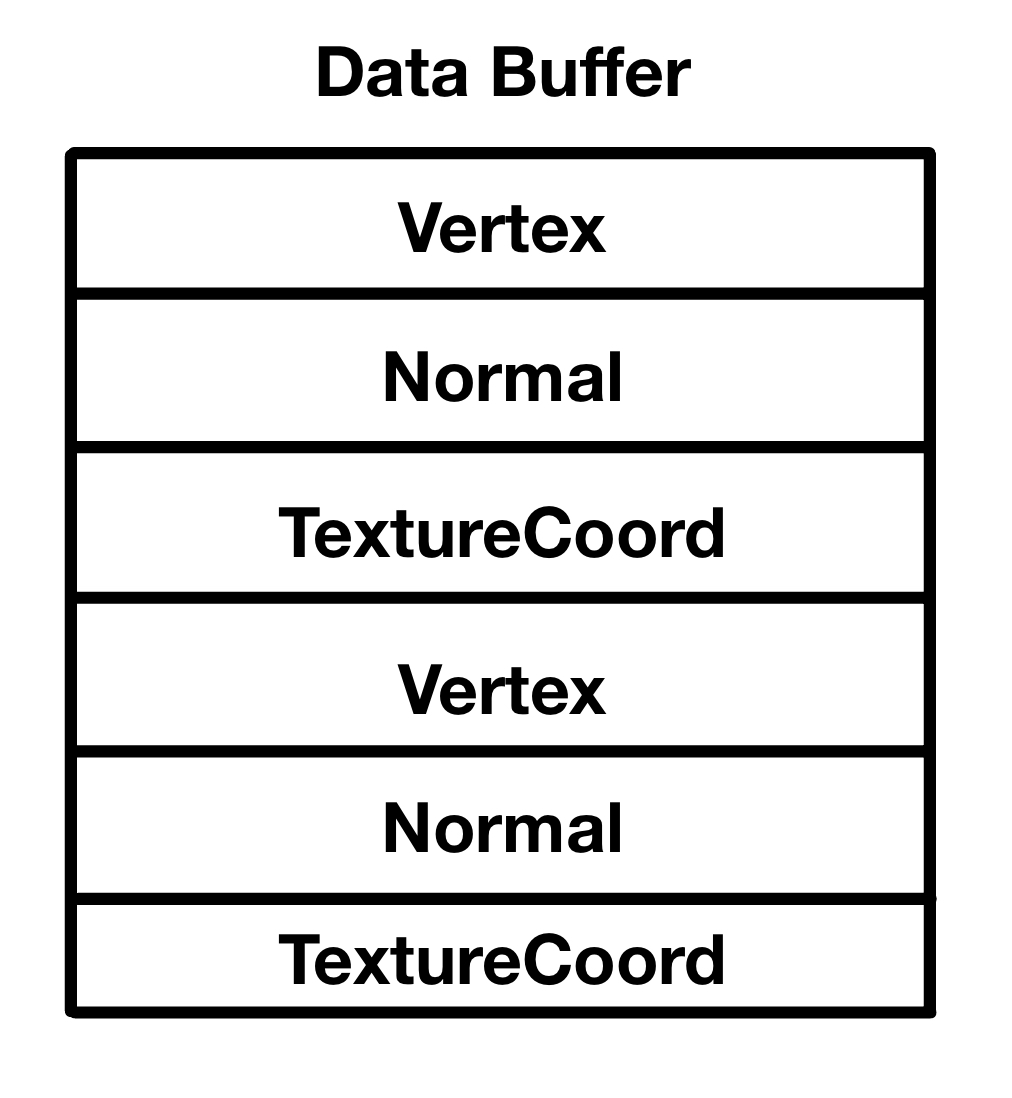

If the input data will be provided interleaved in one buffer as shown in figure \(1\), then the VkPipelineVertexInputStateCreateInfo structure can be constructed as follows:
VkVertexInputBindingDescription d;
d.binding = 0;
d.stride = 8 * sizeof(float);
d.inputRate = VK_VERTEX_INPUT_RATE_VERTEX;
std::vector<VkVertexInputAttributeDescription> A(3);
A[0].location = 0;
A[0].binding = 0;
A[0].format = VK_FORMAT_R32G32B32_SFLOAT;
A[0].offset = 0;
A[1].location = 1;
A[1].binding = 0;
A[1].format = VK_FORMAT_R32G32B32_SFLOAT;
A[1].offset = 3 * sizeof(float);
A[2].location = 2;
A[2].binding = 0;
A[2].format = VK_FORMAT_R32G32_SFLOAT;
A[2].offset = 6 * sizeof(float);
VkPipelineVertexInputStateCreateInfo info{};
info.sType = VK_STRUCTURE_TYPE_PIPELINE_VERTEX_INPUT_STATE_CREATE_INFO ;
info.vertexBindingDescriptionCount = 1;
info.pVertexBindingDescriptions = &d;
info.vertexAttributeDescriptionCount = 3;
info.pVertexAttributeDescriptions = A.data();

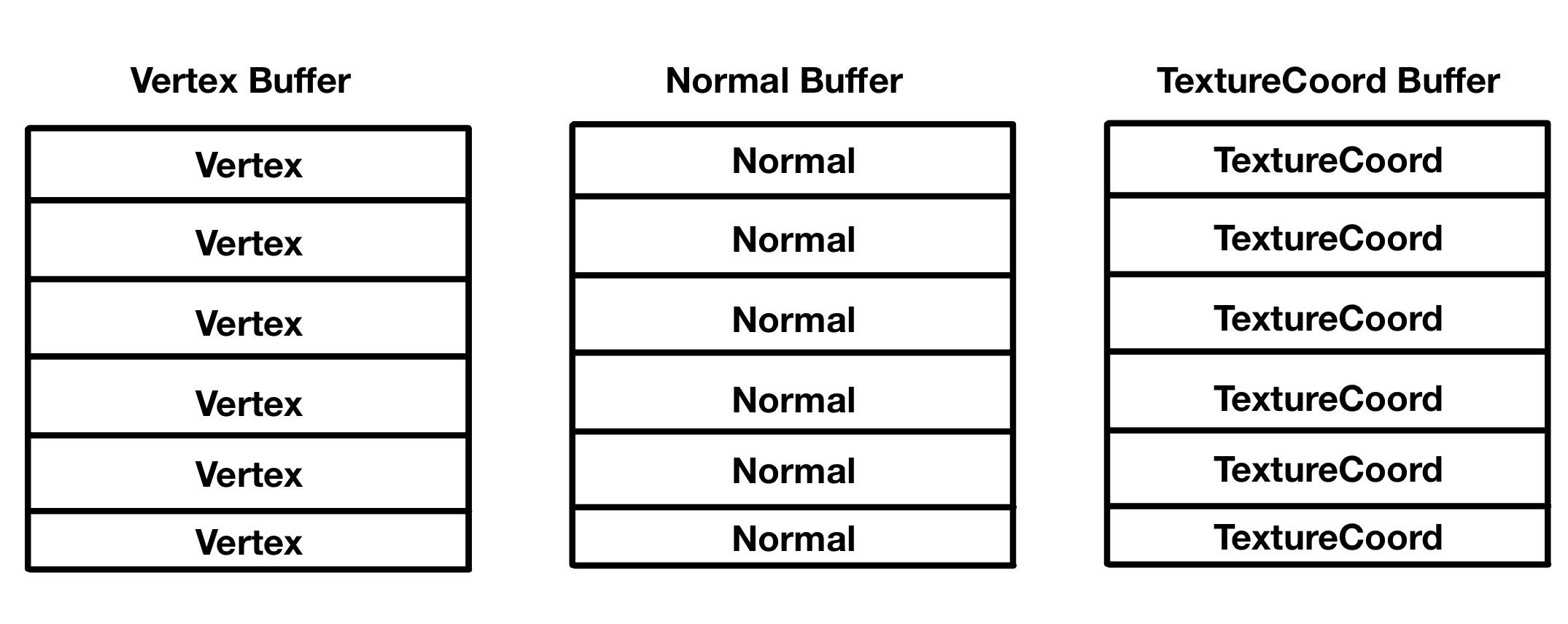

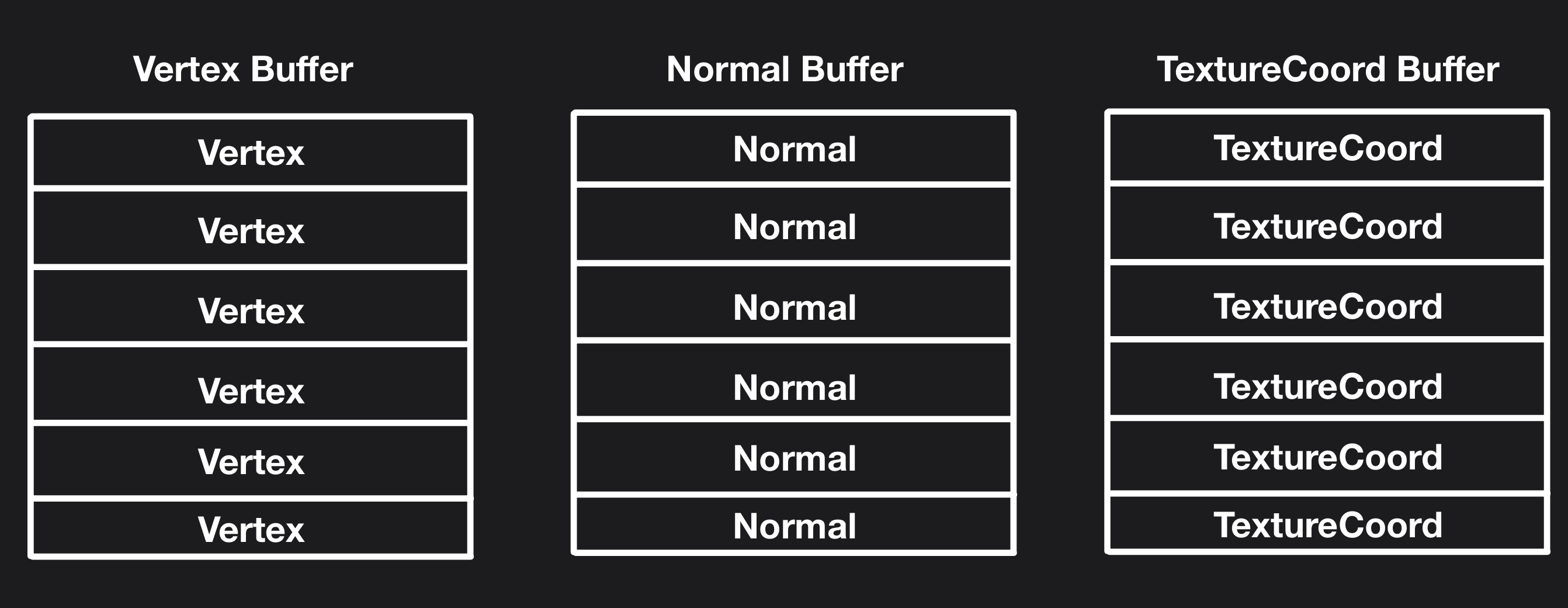

If each input data will be provided seperately in its own buffer, as shown in figure \(2\), then the VkPipelineVertexInputStateCreateInfo structure can be constructed as follows:
std::vector<VkVertexInputBindingDescription> D(3);
D[0].binding = 0;
D[0].stride = 3 * sizeof(float);
D[0].inputRate = VK_VERTEX_INPUT_RATE_VERTEX;
D[1].binding = 1;
D[1].stride = 3 * sizeof(float);
D[1].inputRate = VK_VERTEX_INPUT_RATE_VERTEX;
D[2].binding = 2;
D[2].stride = 2 * sizeof(float);
D[2].inputRate = VK_VERTEX_INPUT_RATE_VERTEX;
std::vector<VkVertexInputAttributeDescription> A(3);
A[0].location = 0;
A[0].binding = 0;
A[0].format = VK_FORMAT_R32G32B32_SFLOAT;
A[0].offset = 0;
A[1].location = 1;
A[1].binding = 1;
A[1].format = VK_FORMAT_R32G32B32_SFLOAT;
A[1].offset = 0;
A[2].location = 2;
A[2].binding = 2;
A[2].format = VK_FORMAT_R32G32_SFLOAT;
A[2].offset = 0;
VkPipelineVertexInputStateCreateInfo info{};
info.sType = VK_STRUCTURE_TYPE_PIPELINE_VERTEX_INPUT_STATE_CREATE_INFO ;
info.vertexBindingDescriptionCount = 3;
info.pVertexBindingDescriptions = D.data();
info.vertexAttributeDescriptionCount = 3;
info.pVertexAttributeDescriptions = A.data();
The problems with this manual way of filling the VkPipelineVertexInputStateCreateInfo structure are mainly scalability and flexibility.
If you edited the vertex input in the shader in any way; for example changing the order or the format of the inputs, you will have to edit the setup code accordingly. This may not be a problem if there is only a few graphics pipelines in the program. However, if the program have many graphics pipelines, it may bloat the code unnecessarily and become time consuming to manually manage the vertex input setup code for all of them.
Hence, I am proposing an automated way to fill the VkPipelineVertexInputStateCreateInfo structure. This method reads the vertex shader code, parses it, and accordingly decides what data to fill in each field of the structure.
The parsing, and the extraction of information from the vertex shader is done using SPIRV-CROSS which is an open-source library provided by KhronosGroup. This library reads the raw SPV shader file data and extracts relevant information pertaining that vertex shader, which includes the vertex input. We can then fetch those data to accordingly fill the VkVertexInputAttributeDescription structure.
We will start by creating a struct called VertexInputInfo which will package the array of objects of VkVertexInputAttributeDescription and VkVertexInputBindingDescription.
struct VertexInputInfo{
std::vector<VkVertexInputAttributeDescription> attributes;
std::vector<VkVertexInputBindingDescription> bindings;
};
We will create a class called VertexInput. This class encapsulates the setup of the vertex input data for the construction of the VkPipelineVertexInputStateCreateInfo structure for the graphics pipeline creation.
class VertexInput{
};
We will start by adding a helper function to read the raw file data of the SPV shader file:
static std::vector<uint32_t> ReadFile(std::string filepath)
{
std::ifstream file(filepath, std::ios::binary | std::ios::ate );
if(!file.is_open())
throw std::runtime_error("ERROR::FAILURE TO OPEN SHADER FILE FOR READING");
size_t fileSize = file.tellg();
file.seekg(0, std::ios::beg);
std::vector<uint32_t> fileData;
fileData.resize(fileSize / sizeof(uint32_t));
file.read(reinterpret_cast<char*>(fileData.data()), fileSize);
return fileData;
}
We will add another helper function that returns the Vulkan format VkFormat of the input, given the data type spirv_cross::SPIRType extracted by SPIR-V cross library.
static VkFormat GetAttributeFormat(spirv_cross::SPIRType type)
{
switch(type.basetype){
case spirv_cross::SPIRType::Float:
switch(type.vecsize){
case 4:
return VK_FORMAT_R32G32B32A32_SFLOAT;
case 3:
return VK_FORMAT_R32G32B32_SFLOAT;
case 2:
return VK_FORMAT_R32G32_SFLOAT;
case 1:
return VK_FORMAT_R32_SFLOAT;
default:
throw std::runtime_error("ERROR::INVALID SFLOAT VEC_SIZE");
};
case spirv_cross::SPIRType::Int:
switch(type.vecsize){
case 4:
return VK_FORMAT_R32G32B32A32_SINT;
case 3:
return VK_FORMAT_R32G32B32_SINT;
case 2:
return VK_FORMAT_R32G32_SINT;
case 1:
return VK_FORMAT_R32_SINT;
default:
throw std::runtime_error("ERROR::INVALID SINT VEC_SIZE");
};
case spirv_cross::SPIRType::UInt:
switch(type.vecsize){
case 4:
return VK_FORMAT_R32G32B32A32_UINT;
case 3:
return VK_FORMAT_R32G32B32_UINT;
case 2:
return VK_FORMAT_R32G32_UINT;
case 1:
return VK_FORMAT_R32_UINT;
default:
throw std::runtime_error("ERROR::INVALID UINT VEC_SIZE");
};
default:
throw std::runtime_error("ERROR::INVALID BASE_TYPE");
};
}
We will add one final helper function that returns size of the attribute given the format VkFormat of the input:
static size_t GetAttributeSize(VkFormat format)
{
switch(format){
case VK_FORMAT_R32G32B32A32_SFLOAT:
return 4 * sizeof(float);
case VK_FORMAT_R32G32B32_SFLOAT:
return 3 * sizeof(float);
case VK_FORMAT_R32G32_SFLOAT:
return 2 * sizeof(float);
case VK_FORMAT_R32_SFLOAT:
return sizeof(float);
case VK_FORMAT_R32G32B32A32_SINT:
return 4 * sizeof(int32_t);
case VK_FORMAT_R32G32B32_SINT:
return 3 * sizeof(int32_t);
case VK_FORMAT_R32G32_SINT:
return 2 * sizeof(int32_t);
case VK_FORMAT_R32_SINT:
return sizeof(int32_t);
case VK_FORMAT_R32G32B32A32_UINT:
return 4 * sizeof(uint32_t);
case VK_FORMAT_R32G32B32_UINT:
return 3 * sizeof(uint32_t);
case VK_FORMAT_R32G32_UINT:
return 2 * sizeof(uint32_t);
case VK_FORMAT_R32_UINT:
return sizeof(uint32_t);
default:
throw std::runtime_error("ERROR::INVALID FORMAT");
};
}
Now we can start writing the main function of the class Build(). The function takes as input:
- vsFilePath: FilePath of the vertex shader
- interleaved: A flag indicating whether the vertex input data is going to be interleaved in one buffer, or each input is going to have its own buffer.
and returns an object of type VertexInputInfo. The function reads and parses the vertex shader file, and accordingly fills the arrays of VkVertexInputAttributeDescription and VkVertexInputBindingDescription structures.
Below is the code for the function Build()
static VertexInputInfo Build(std::string vsFilePath, bool interleaved)
{
std::vector<uint32_t> vsFileData = ReadFile(vsFilePath);
spirv_cross::Compiler compiler(vsFileData);
spirv_cross::ShaderResources resources = compiler.get_shader_resources();
VertexInputInfo v;
uint32_t offset = 0;
std::vector<uint32_t> attributeSizes;
// Iterate through each vertex input
for(uint32_t i = 0; i < resources.stage_inputs.size(); i++){
spirv_cross::Resource r = resources.stage_inputs[i];
// Extract the data type of vertex input i
spirv_cross::SPIRType type = compiler.get_type(r.type_id);
// Extract the location of vertex input i
uint32_t location = compiler.get_decoration(r.id, spv::DecorationLocation);
// Get the format of the input according to its data type
VkFormat format = GetAttributeFormat(type);
v.attributes.push_back(VkVertexInputAttributeDescription{
.location = location,
.binding = (interleaved)? 0: i,
.offset = (interleaved)? offset: 0,
.format = format
});
uint32_t attributeSize = GetAttributeSize(format);
attributeSizes.push_back(attributeSize);
// Increment the offset for use, in case data is interleaved
offset += attributeSize;
}
// If interleaved, only one buffer is needed
if(interleaved)
v.bindings.push_back(VkVertexInputBindingDescription{
.binding = 0,
.stride = offset,
.inputRate = VK_VERTEX_INPUT_RATE_VERTEX,
});
else{
for(size_t i = 0; i < v.attributes.size(); i++)
v.bindings.push_back(VkVertexInputBindingDescription{
.binding = v.attributes[i].binding,
.stride = attributeSizes[i],
.inputRate = VK_VERTEX_INPUT_RATE_VERTEX
});
}
return v;
}
Below is the entire VertexInput class:
class VertexInput{
public:
static VertexInputInfo Build(std::string vsFilePath, bool interleaved)
{
std::vector<uint32_t> vsFileData = ReadFile(vsFilePath);
spirv_cross::Compiler compiler(vsFileData);
spirv_cross::ShaderResources resources = compiler.get_shader_resources();
VertexInputInfo v;
uint32_t offset = 0;
std::vector<uint32_t> attributeSizes;
for(uint32_t i = 0; i < resources.stage_inputs.size(); i++){
spirv_cross::Resource r = resources.stage_inputs[i];
spirv_cross::SPIRType type = compiler.get_type(r.type_id);
uint32_t location = compiler.get_decoration(r.id, spv::DecorationLocation);
VkFormat format = GetAttributeFormat(type);
v.attributes.push_back(VkVertexInputAttributeDescription{
.location = location,
.binding = (interleaved)? 0: i,
.offset = (interleaved)? offset: 0,
.format = format
});
uint32_t attributeSize = GetAttributeSize(format);
attributeSizes.push_back(attributeSize);
offset += attributeSize;
}
if(interleaved)
v.bindings.push_back(VkVertexInputBindingDescription{
.binding = 0,
.stride = offset,
.inputRate = VK_VERTEX_INPUT_RATE_VERTEX,
});
else{
for(size_t i = 0; i < v.attributes.size(); i++)
v.bindings.push_back(VkVertexInputBindingDescription{
.binding = v.attributes[i].binding,
.stride = attributeSizes[i],
.inputRate = VK_VERTEX_INPUT_RATE_VERTEX
});
}
return v;
}
private:
static std::vector<uint32_t> ReadFile(std::string filepath)
{
std::ifstream file(filepath, std::ios::binary | std::ios::ate );
if(!file.is_open())
throw std::runtime_error("ERROR::FAILURE TO OPEN SHADER FILE FOR READING");
size_t fileSize = file.tellg();
file.seekg(0, std::ios::beg);
std::vector<uint32_t> fileData;
fileData.resize(fileSize / sizeof(uint32_t));
file.read(reinterpret_cast<char*>(fileData.data()), fileSize);
return fileData;
}
static size_t GetAttributeSize(VkFormat format)
{
switch(format){
case VK_FORMAT_R32G32B32A32_SFLOAT:
return 4 * sizeof(float);
case VK_FORMAT_R32G32B32_SFLOAT:
return 3 * sizeof(float);
case VK_FORMAT_R32G32_SFLOAT:
return 2 * sizeof(float);
case VK_FORMAT_R32_SFLOAT:
return sizeof(float);
case VK_FORMAT_R32G32B32A32_SINT:
return 4 * sizeof(int32_t);
case VK_FORMAT_R32G32B32_SINT:
return 3 * sizeof(int32_t);
case VK_FORMAT_R32G32_SINT:
return 2 * sizeof(int32_t);
case VK_FORMAT_R32_SINT:
return sizeof(int32_t);
case VK_FORMAT_R32G32B32A32_UINT:
return 4 * sizeof(uint32_t);
case VK_FORMAT_R32G32B32_UINT:
return 3 * sizeof(uint32_t);
case VK_FORMAT_R32G32_UINT:
return 2 * sizeof(uint32_t);
case VK_FORMAT_R32_UINT:
return sizeof(uint32_t);
default:
throw std::runtime_error("ERROR::INVALID FORMAT");
};
}
static VkFormat GetAttributeFormat(spirv_cross::SPIRType type)
{
switch(type.basetype){
case spirv_cross::SPIRType::Float:
switch(type.vecsize){
case 4:
return VK_FORMAT_R32G32B32A32_SFLOAT;
case 3:
return VK_FORMAT_R32G32B32_SFLOAT;
case 2:
return VK_FORMAT_R32G32_SFLOAT;
case 1:
return VK_FORMAT_R32_SFLOAT;
default:
throw std::runtime_error("ERROR::INVALID SFLOAT VEC_SIZE");
};
case spirv_cross::SPIRType::Int:
switch(type.vecsize){
case 4:
return VK_FORMAT_R32G32B32A32_SINT;
case 3:
return VK_FORMAT_R32G32B32_SINT;
case 2:
return VK_FORMAT_R32G32_SINT;
case 1:
return VK_FORMAT_R32_SINT;
default:
throw std::runtime_error("ERROR::INVALID SINT VEC_SIZE");
};
case spirv_cross::SPIRType::UInt:
switch(type.vecsize){
case 4:
return VK_FORMAT_R32G32B32A32_UINT;
case 3:
return VK_FORMAT_R32G32B32_UINT;
case 2:
return VK_FORMAT_R32G32_UINT;
case 1:
return VK_FORMAT_R32_UINT;
default:
throw std::runtime_error("ERROR::INVALID UINT VEC_SIZE");
};
default:
throw std::runtime_error("ERROR::INVALID BASE_TYPE");
};
}
};
Using this class, we can build the VkPipelineVertexInputStateCreateInfo structure simply as follows:
VertexInputInfo vi = VertexInput::Build("/path/to/vsFilePath.spv");
VkPipelineVertexInputStateCreateInfo info{};
info.sType = VK_STRUCTURE_TYPE_PIPELINE_VERTEX_INPUT_STATE_CREATE_INFO ;
info.vertexBindingDescriptionCount = static_cast<uint32_t>(vi.vertexBindingDescription.size());
info.pVertexBindingDescriptions = vi.vertexBindingDescription.data();
info.vertexAttributeDescriptionCount = static_cast<uint32_t>(vi.vertexAttributeDescription.size());
info.pVertexAttributeDescriptions = vi.vertexAttributeDescription.data();
With this setup, we can freely edit the vertex shader code, and not be obligated to change or re-compile the source code, since the vertex input state is constructed automatically with this class.
The github repository containing the entire code can be found here.
